Network Integration Launched in 2019, as the next generation of the entry-level Lock 100 series, TOSIBOX® Lock 150 provides a nearly 70 percent increase in encrypted throughput while continuing to provide ethernet and Wi-Fi connectivity. The Lock 150 enables true point-to-point Layer 3 and Layer 2 VPN connectivity natively. Cellular support via USB is also offered with the product, with options that ensure the Lock 150 can connect world-wide.

Main Features

  • Quick setup – no software installations, network configurations or special IT skills.
  • NAT and Firewall friendly
  • VPN throughput up to 10Mb/s and end to end encryption between TOSIBOX devices
  • Highest security levels in the industry
  • Up to 10 VPN connections
  • Compact physical size

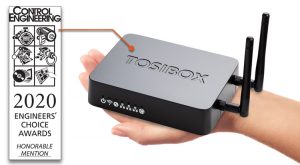

The TOSIBOX Lock 150 has received an honourable mention in the Network Integration category at the prestigious Engineering 2020 Engineers’ Choice Awards. This was the 33rd annual award ceremony which looks at 29 categories of control, instrumentation and automation. The awards look at the best innovations revealed in the previous year.

Technical Data

Ports

  • 1 x USB 2.0, type A
  • 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • 1 x RJ-45 Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)

Connections

  • 10-30V DC +-10% (reverse polarity protected)
  • 2 x Wireless network antenna connector, RP-SMA
  • DIN rail attachment (bottom), angle bracket available as an accessory (TBMBD1)

WAN connection features

  • Independent of operating systems
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Firewall friendly
  • Works with dynamic, static and private IP addresses
  • Built-in firewall, NAT
  • Up to 10 concurrent VPN connections
  • VPN throughput up to 10 Mbit/s

Mobile connection features

  • Supported USB modems: TOSIBOX® 4G modem, TB4GM (Huawei E3372), TB3GM2M (Huawei MS2131)
  • TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

WLAN

  • IEEE 802.11 b/g/n, max. 150 Mbps
  • WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed, WPA-EAP, WPA2-EAP TKIP/AES encryption
  • Frequency 2.412 – 2.462 GHz, 11 channels
  • Output power 20 dBm max

Physical properties

  • 132 mm x 99 mm x 35.5 mm / 5.2″ x 3.9″ x 1.4″ (L x W x H)
  • Weight 593 g / 1.31 lbs (net weight article)
  • Cast aluminium casing
  • Operating temperature: -20 °C … +55 °C / -4 °F … 131 °F
  • Operating humidity: 20 – 80% RH, non-condensing
  • Storage temperature -40 °C … +70 °C / -40 °F … 158 °F
  • Protection class IP20

Included accessories

  • 2 x WLAN antennas, 2 dBi
  • AC Adapter (EU, UK, AU or US power socket)
  • DC input plug
  • DIN rail mounting bracket

Lock 150 power source

  • Model: ATS024T-W240V
  • Input: 100-240 V AC
  • Frequency: 50-60 Hz
  • Output: 24 V / 1 A / max 24 W
  • Operating temperature: -20 °C … +70 °C / -4°F… 158 °F
  • Operating humidity: 20% – 80% RH
  • Storage temperature: -20 °C … +80 °C / -4°F… 176 °F
  • Storage humidity: 10% – 90% RH

TOSIBOX® Lock 150 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.
