manual balancing valvesHVAC manual balancing valves for your application

For a number of years ACS has supplied manual balancing valves from the Honeywell range. Hundreds of mechanical contractors, engineers and project managers have specified and used our manual balancing valves in projects throughout southern Africa, making us a preferred supplier in the region.

Honeywell manual balancing valves

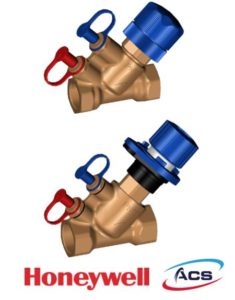

Used in applications where pipe sizes range from DN15 to DN80, the V5032 Kombi-2-plus range offers static, variable orifice double- regulating balancing valves with shut-off functions. Ideally suited for variable and constant flow systems, the valves manually balance the flow set resistances to an equal level all over the system.



Their main features include:

  • Precise pre-setting with numeric scale
  • Concealed pre-setting prevents unwanted operation
  • Wide range of application
  • Versions for standard and low flow rates available
  • Easy Commissioning
  • Fast and safe measurement with SafeConTM measuring connections – 6 times faster than standard Binder connections
  • All functions located on one side for easier access and use
  • Optimal measuring in combination with Honeywell BasicMess (VM242) – all flow values are already included in the measuring device
  • Maintenance friendly – Insert fully interchangeable, Integrated shutoff function, Pre-setting is not changed during shutoff

Hydronic heating or cooling valve solutions

ACS also offer solutions for the efficient operation of hydronic heating or cooling installations with the Honeywell Kombi-F-II and Kombi-F range of flanged balancing and shut-off valves.

  • Balancing through stroke limitation with digital pre-setting and visible pre-setting indicator
  • Equipped with 2 pressure test cocks for differential pressure measurement (DN25…DN400)
  • Non rising spindle with EDD (double sealing system)
  • Pre-setting isn`t altered when hand wheel is turned
  • Stroke limitation-screw protected by protection cap
  • PTFE-seat sealing
  • Spindle made of stainless steel
  • Valve body made of corrosion resistant cast iron
  • Available in dimensions up to DN400

The Honeywell range of manual balancing valves has proven time and time again that they are an exceptionally functional and diverse option to choose for any balancing application. So give us a call to find out more about these and other balancing solutions we can offer you!
